Top industrial bakery machinery manufacturer.
| Place of Origin: | China |
|---|---|
| Brand Name: | ZLINE |
| Certification: | CE |
| Model Number: | ZKS900 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 2 sets per month |
| Name: | Puff Pastry Machine | Capacity: | 500 - 2500 Kg / H Dough |
|---|---|---|---|
| Drawing: | Available | Dough Thickness: | 2.5 - 10 Mm |
| Temperature: | -15 To -40℃ Adjustable | Material: | 304 Stainless Steel |
| Depositing Nozzles: | 8 | Assembling: | Eurapean Standard |
| High Light: | industrial pastry machine,automatic pastry machine,8 row puff pastry machine |
||
1. Production line description

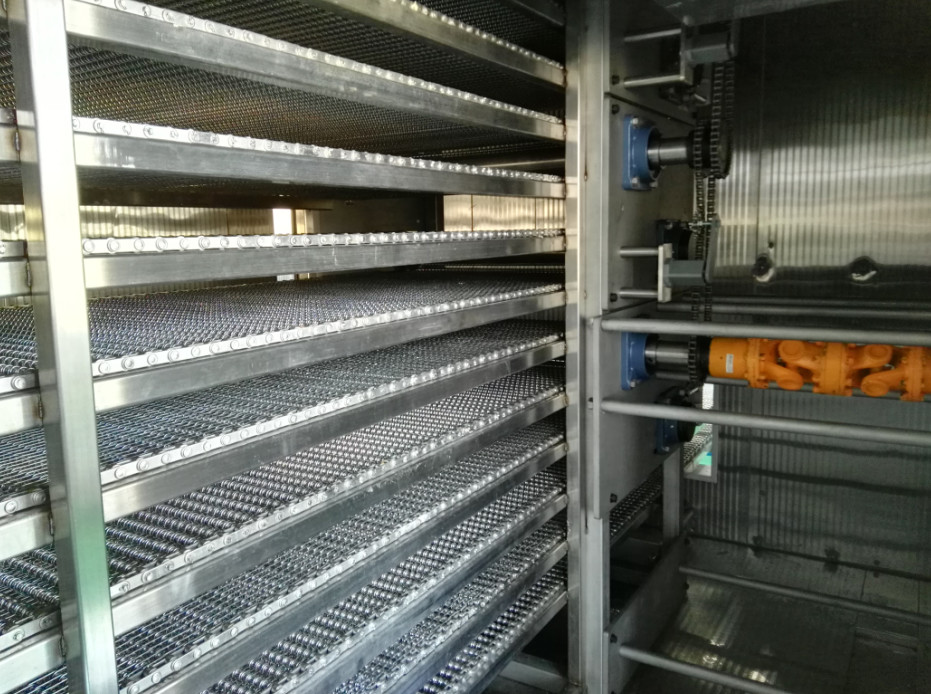

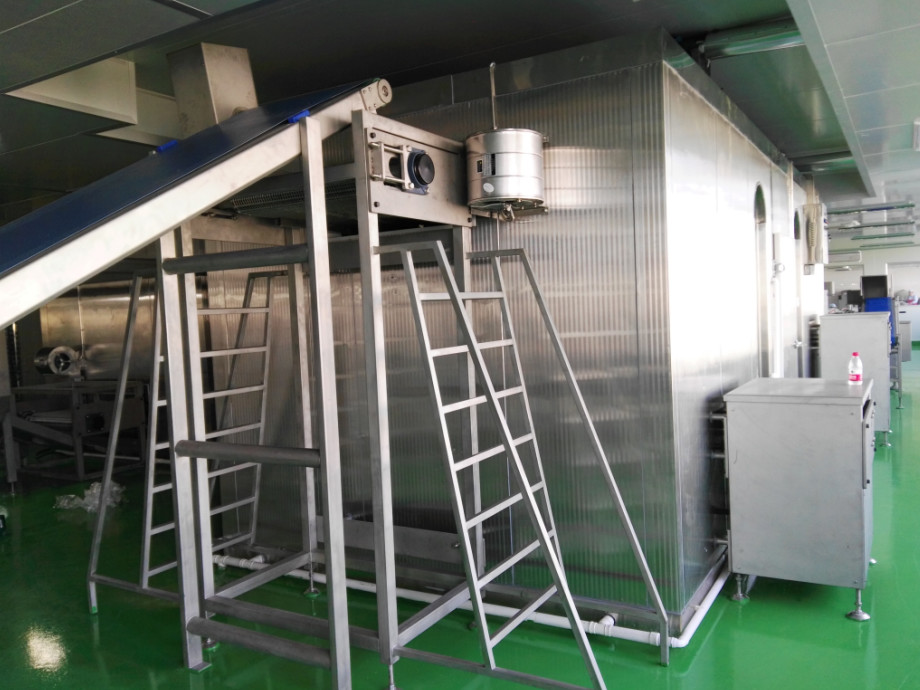

ZKS900 puff pastry machine is industrial line to produce wide various kinds of pastries , like the croissant,sausage roll , apple pie , puff pastry , Danish pastry etc . the line is complete one with 2 sets of freezing tunnels , so that , customers don't need to separately build a freezing room . and the freezing tunnels are optional.
2. Commercial pastry equipment main parameters :
| Capacity | 500 - 2500 kg / h dough |
| Puff pastry dough layers | Max.144 , adjustable |
| Dough sheet thickness | 2.5 - 10 mm |
| Freezing temperature | -15℃ to -40 ℃ different pastry dough requires different temperatyre |
| IFilling solution | Depositing or spraying |
| Rows | 8 , adjustable |
| Dough sheet width | Max.800 mm at the end of the line |
| Belt width | 850 mm at the end of the line |
| Fat pump | Available |
3. Key features
1 ) Freezing tunnels are optional , one or two would be available
2 ) Different make-up equipment are available for different puff product .
3 ) Dough sheet thickness and width are adjustable
4 ) The complete line can be controlled by the PLC touch panel ,altogether or singly .
5 )The line is modular design , different configuration for different product .
6 ) The tunnel oven and cooling tower are also available for complete line project
7 ) The temperature of each freezing tunnel can be adjusted independently .
4. Configuration details
| No. | Items | Brand | Country |
| 1 | Conveyor belt | AiAi PU belt | Italy |
| 2 | Bearing | INA | Germany |
| 3 | Bearing seat | FAG | Germany |
| 4 | Motor | Germany | |
| 5 | PLC | Siemens | Germany |
| 6 | Servo motor | Siemens | Germany |
| 7 | Touch screen | Siemens | UK |
| 8 | Frequency convertor | Danfoss | Germany |
| 9 | Swiching power | Siemens | Switzerland |
| 10 | Low- voltage component | Schneider | France |
| 11 | Approach switch | Omron | Japan |
| 12 | Stainless steel | 304 | China |
ZKS900 puff making machine is capable to produce sausage roll , packed or unpacked
