Top industrial bakery machinery manufacturer.
| Place of Origin: | China |
|---|---|
| Brand Name: | ZLINE |
| Certification: | CE |
| Model Number: | ZKS900 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case package |
| Delivery Time: | within 45 days after deposit |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 2 sets/ month |
| Product Name: | Sausage Roll Machine | Capacity: | 3000 - 20000 Pcs/hr |
|---|---|---|---|
| Product Weight: | 20 - 100 G | Drawing: | Available |
| Custom - Tailor: | Available | Control System: | Siemens PLC |
| Pastry Layers: | Max.144 | Assembling: | European Standard |
| Highlight: | European Standard Dough Laminator Machine,automatic pastry machine,Siemens PLC dough laminator |
||

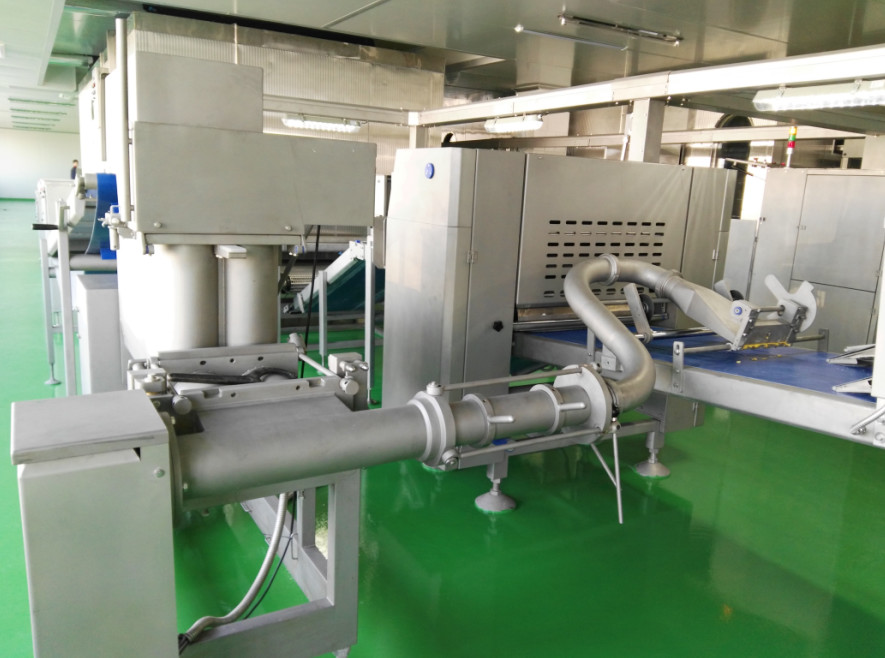

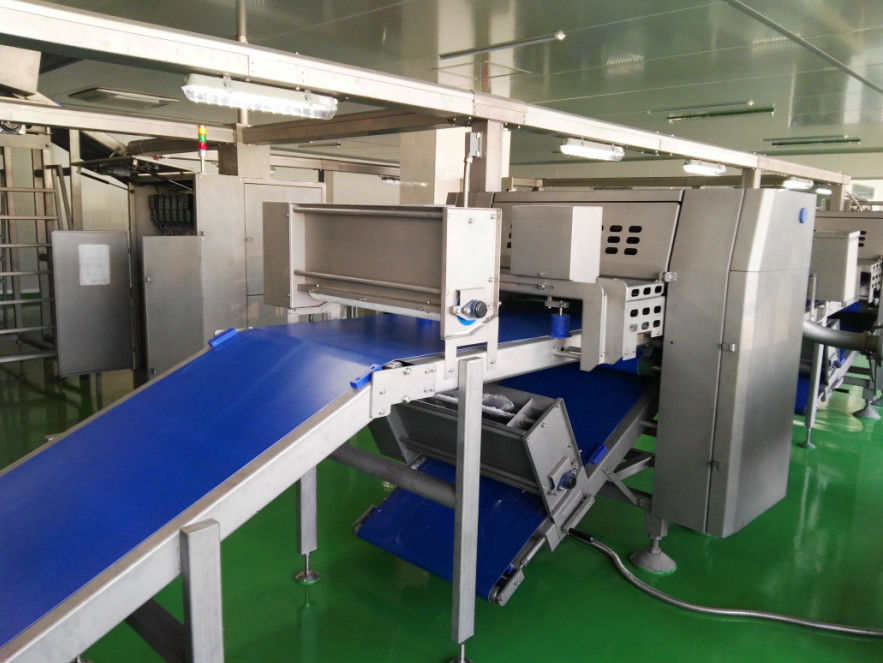

1. Production line description
ZKS900 dough laminator will uniformly sheeting and laminating the dough band before the make-up line ,
the pastry layers are adjustable according to need , Certain make-up equipment will be custm-tailor for different product like the sausage roll , ingredient filling equipment also available .
2. Sausage roll production line details
| Capacity | 3000 - 20000 pcs /h |
| Product size | The diameter and cutting |
| Dough sheet thickness | 3 - 10 mm |
| Pastry layers | Max. 144 layers |
| Make-up equipment | Custom-tailor for other pastry product |
| Rows | According to capacity requirement |
| Dough sheet width | Max.800 mm |
| Table width | 850 mm |
| Control system | Siemens PLC touch panel |
| Tunnel oven | Available |
3. Configuration
| No. | Items | Brand | Country |
| 1 | Conveyor belt | AiAi PU belt | Italy |
| 2 | Bearing seat | INA | Germany |
| 3 | Bearing | FAG | Germany |
| 4 | Motor | Germany | |
| 5 | Servo motor | Siemens | Germany |
| 6 | PLC | Siemens | Germany |
| 7 | Frequency convertor | Siemens | UK |
| 8 | Touch screen | Siemens | UK |
| 9 | Swiching power | Siemens | Switzerland |
| 10 | Low- voltage component | Schneider | France |
| 11 | Approach switch | Omron | Japan |
4. Service
Oversea installation / commissioning / maintenance / training and other necessary technical support .
