| Place of Origin: | China |
|---|---|
| Brand Name: | ZLINE |
| Model Number: | ZDS150 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case package |
| Delivery Time: | 7 days after deposit |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 30 sets/month |
| Product Name: | Cake Depositor | Capacity: | 300 - 600 Traies /hr |
|---|---|---|---|
| Tray: | 400 * 600 Mm | Power: | 1.8 Kw / 380V |
| Machine Weight: | 450 Kg | Video: | Available |
| Custom-tailor: | Available | Application: | Cake And Cookies |
| High Light: | cupcake production line,cupcake making equipment |
||
1. Production line description:

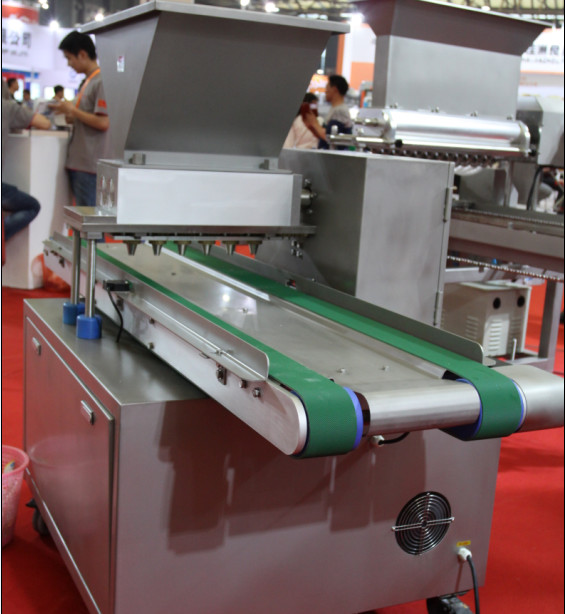

ZDS150 cake depositor is also capable for cookies and biscuit manufacturing , The same machine , just make some adjustment . The number of nozzles are normally 6 and customized according to need , the nozzles are also changeable , wide choice of nozzles accessories is available for cookies in different shapes, patterns and taste .
2. Main features
1 ) Available for both cake ,cookies and biscuit making
2 ) Flexible structure and space saving .
3 ) The size of trays is 400*600 mm .
4 ) The control box is easy to be dismantled for easy cleaning
5 ) Servo motor to drive the belt smoothly running
6 ) Nozzles are changeable for different shape of product
7 ) Siemens PLC control panel , easy to operation
3. Application
4. Cookies machine parameters
| Motor | Servo motor |
| Capacity | 300 - 600 trays / hr |
| Power | 1.8 kw / 380 V / 50 HZ |
| Machine weight | 450 kg |
| Dimension | 1900 * 890 * 1450 mm |
| Nozzle | 6 |
